Description

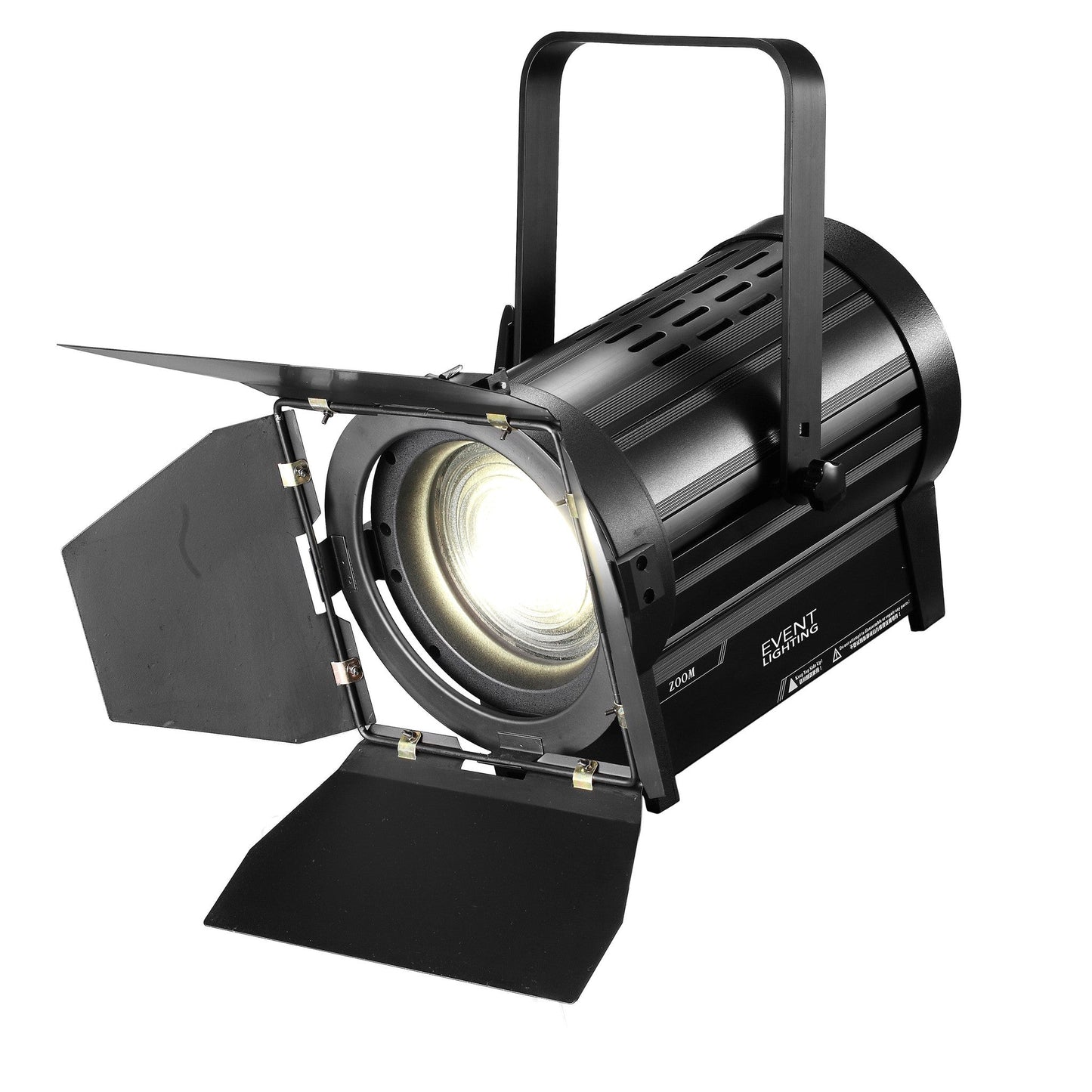

The Event Lighting fresnel uses a single source LED engine to provide a smooth and even field of warm white light, providing a modern replacement for traditional fresnels.Multiple dimming curves are available down to 16 bit for ultra-smooth fading cues. Not only that but it consumes a fraction of the power of traditional fresnels without the need for expensive dimming racks and power distribution. An easily adjustable manual 30-65 degree variable field angle provides a soft field with >95% CRI and high-quality optics. Temperature controlled whisper quiet fan cooling provides near silent performance. Neutrik powercon connections come as standard with 3 pin DMX upgradeable to 5pin. Event Lighting LED fresnels are ideally placed in theaters, broadcast studios or any stage setting that requires smooth warm white output from an energy saving fixture with exceptionally long life. Supplied with barn doors for beam shaping and glare reduction.
- Power Supply: 100~240V AC, 50/60 Hz
- Power Consumption: 200W
- Power Connection: Neutrik® Powercon in / out
- Light Source: 200W 3200K LED module (CRI:95)
- Output: 7392 lux @2.5M at 12°, 3008 lux @2.5M at 25°
- Lens: 150mm Fresnel
- Beam Angle: 12° - 25°
- Field Angle: 30° - 65°
- Zoom: manual zoom 12° - 25°
- Barn Door: Yes
- PWM: 8000Hz
- LED Lifespan: 50,000 hours
- Dimming: 16-bit 0 - 100%
- Strobe: 1 – 25 Hz
- DMX Protocol: DMX512
- DMX Channel Mode: 1 / 2 / 3
- DMX Interface: 3-pin XLR
- Built-in Programming: Yes
- Display: 4-button LCD control panel
- Cooling: Sensor thermostat controlled variable speed fan
- Housing Materials: ABS & steel
- Housing Finishing: Matte Black
- Net Weight: 5 kg
- Overall Size: 360 x 270 x 395mm
