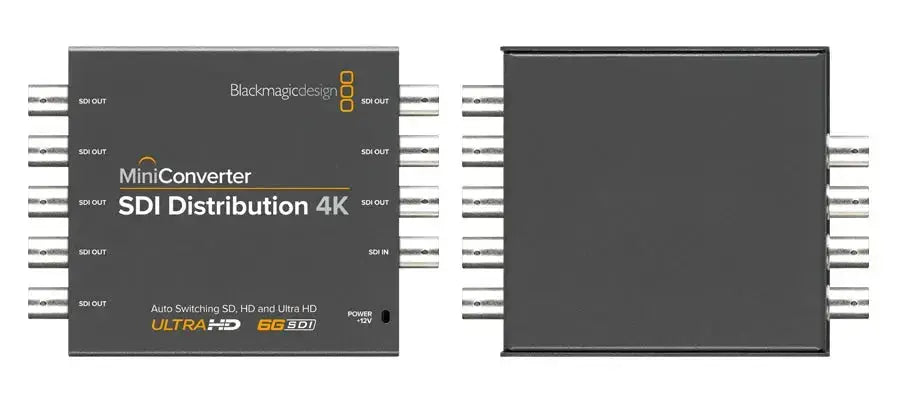

Blackmagic Design Mini Converter SDI Distribution 4K

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution!

Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.



Where it fits

The 4K version of the SDI distribution amplifier, for one Ultra HD source feeding several destinations such as confidence monitors, recorders, projectors and encoders. All eight outputs are re-clocked, and the input switches automatically between SD, HD, 3G and 6G-SDI.

Supported video formats

  • SD: 525i59.94 NTSC, 625i50 PAL
  • HD: 720p50–60, 1080i50–60, 1080p23.98–60, 1080PsF23.98–30
  • 2K DCI: 23.98p–25p and PsF
  • Ultra HD: 2160p23.98–30
  • 4K DCI: 23.98p–25p

Specifications

SDI input 1 × SDI, auto-detects SD, HD and 6G-SDI
SDI outputs 8 × re-clocked, matching the input
SDI compliance SMPTE 259M, 292M, 296M, 372M, ST-2081
Colour 4:2:2 and 4:4:4, YUV and RGB
Audio Embedded, 48 kHz 24-bit
ASI Supported
Power 12 V supply included; 12–31 V DC range; 4.8 W
Operating temperature 0 °C to 40 °C

In the box

  • Mini Converter SDI Distribution 4K
  • 12 V universal power supply with international socket adapters

Frequently Asked Questions

What does this converter do?

It takes a single SDI input and distributes it out to multiple SDI outputs at up to Ultra HD 4K resolution, so one 4K source can feed several destinations at once.

Does it need external power?

Yes, this Mini Converter runs from an included external power supply.

Does it also work with HD signals?

Yes, it distributes HD signals as well as 4K.
