SDI Video Inputs
1
By Blackmagic Design
Blackmagic Design Micro Converter SDI to HDMI 12G PSU
Regular price
$265.00 AUD
Regular price
Sale price
$265.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Regular price
$265.00 AUD
Regular price
Sale price
$265.00 AUD

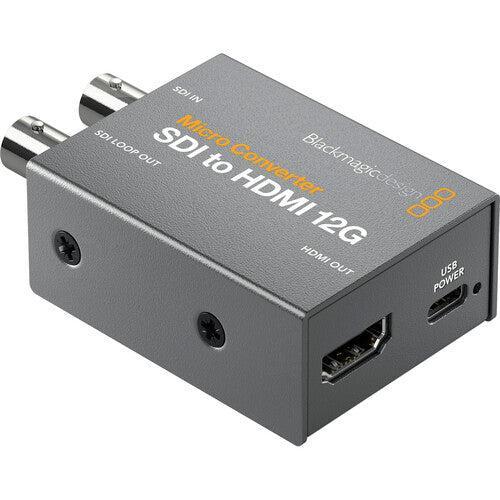

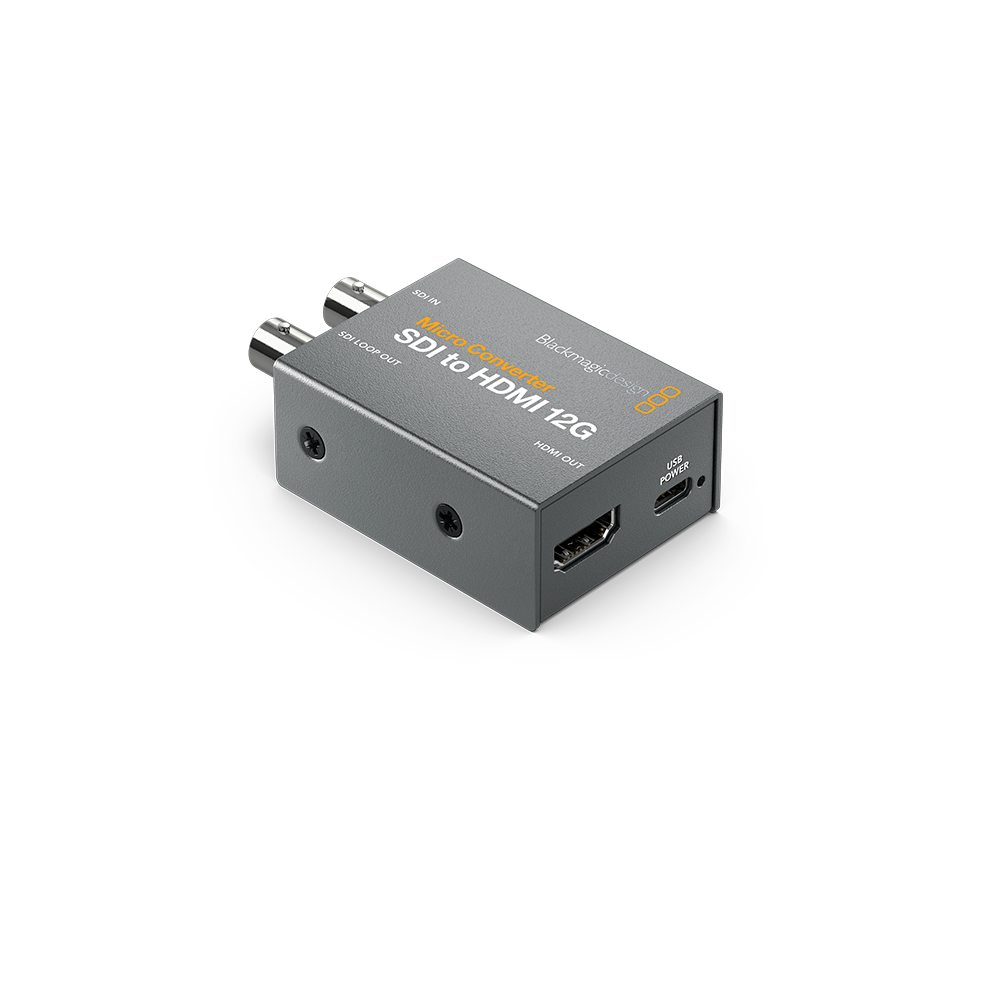

The Blackmagic Design Micro Converter SDI to HDMI 12G with PSU is the world's smallest 12G-SDI to HDMI broadcast quality converter. The Blackmagic Micro Converter SDI to HDMI 12G is a miniaturised broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You can power it over USB from a television or a mobile phone charger.
Key Features
- Extremely small design for portable operation
- Supports upgrading software via USB connection
- Includes 3D LUT for monitoring on SDI to HDMI model
- Includes support for HDR via SDI and HDMI
- Supports 12G-SDI and HDMI timecode standards
- Features 12G-SDI technology with built in SDI re-clocking
- Includes camera control features for Blackmagic ATEM switchers
- Supports all video standards in NTSC, PAL, 720 HD, 1080 HD and 2160 Ultra HD
Models can be purchased with or without power supply
SDI Video Outputs
1 x loop out.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi-Rate Support
Auto-detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‚ÄëC.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Color Precision
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor colour.
SDI Color Space
YUV
SDI Auto-Switching
Automatically detects SD, HD level A or B for 3G‚ÄëSDI, 2K DCI, Ultra HD and 4K DCI.
HDMI Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Precision
4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor colour.
HDMI Color Space
YUV
Settings Control
Via MacOS™ and Windows™ software utility connected by USB.
Software
Internal software upgrade via USB.
Power Requirements
Power Supply
+5V universal power supply included with international socket adapters for most countries.
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
