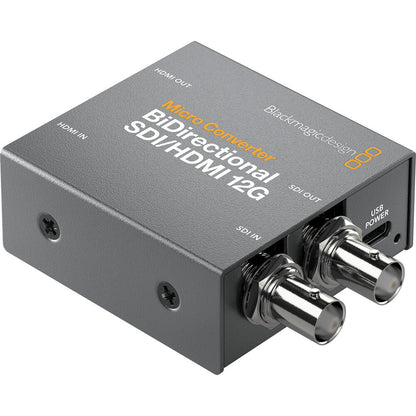

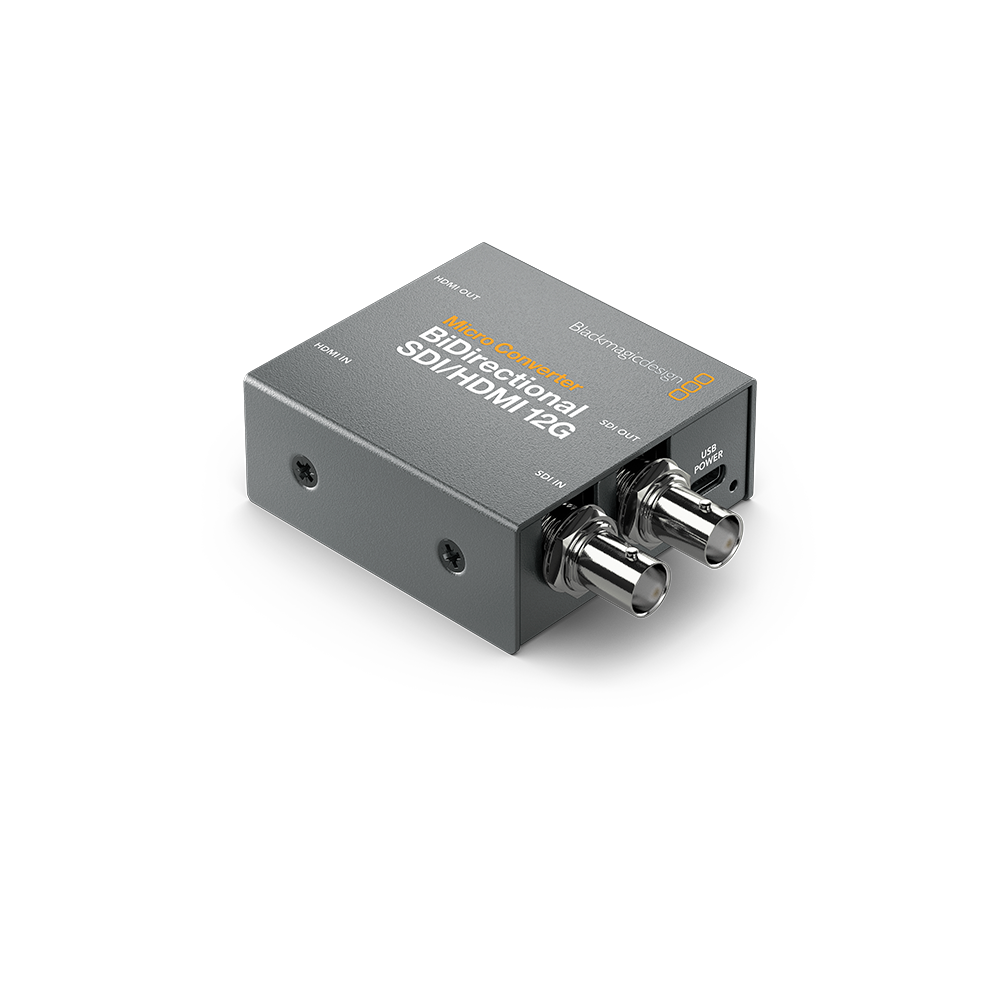

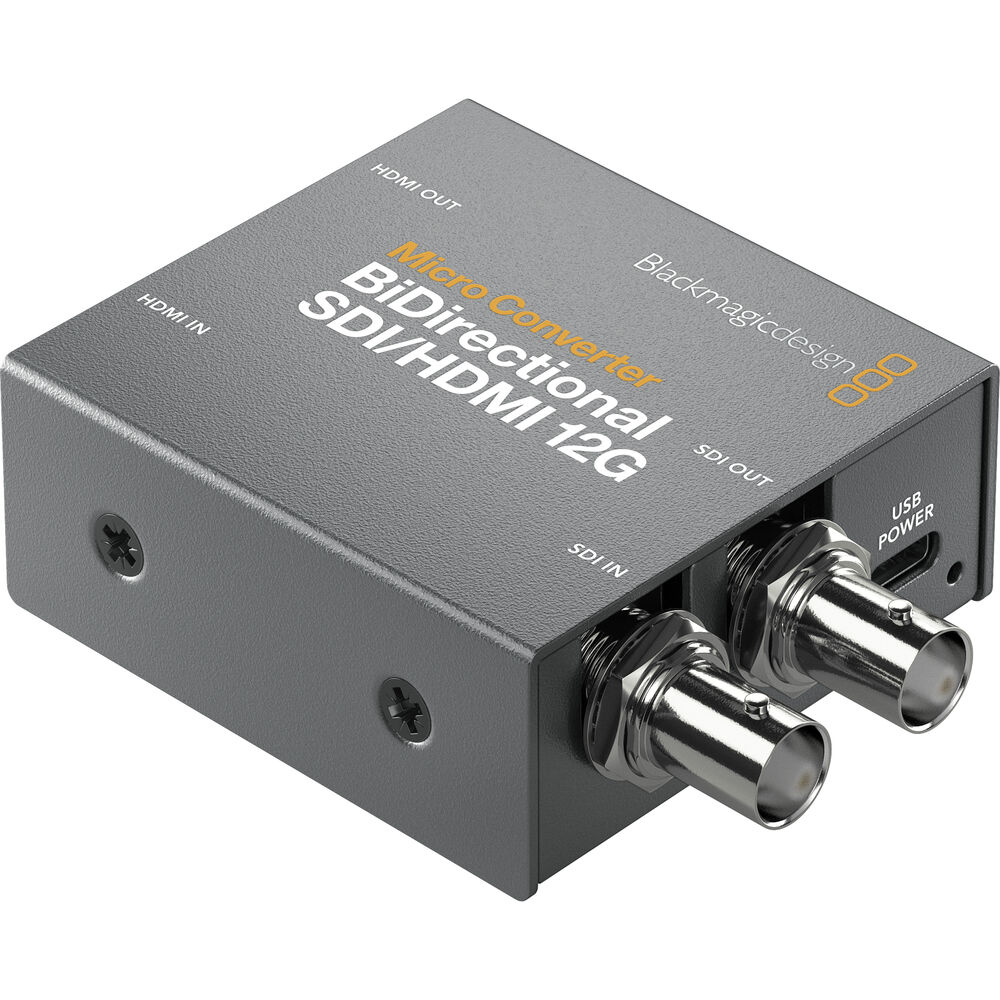

Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G PSU

The Blackmagic Design Micro Converter BiDirect SDI/HDMI 12G with PSU allows you to convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60. Each conversion direction can be a different SD, HD or Ultra HD video standard. The all metal durable design is perfect for live production and broadcast. Plus it's small enough to be hidden and used anywhere. It can be powered from any USB-C socket.

Key Features

• Extremely small design for portable operation
• Supports upgrading software via USB connection
• Includes 3D LUT for monitoring on SDI to HDMI model
• Includes support for HDR via SDI and HDMI
• Supports 12G-SDI and HDMI timecode standards
• Features 12G-SDI technology with built in SDI re-clocking
• Includes camera control features for Blackmagic ATEM switchers
• Supports all video standards in NTSC, PAL, 720 HD, 1080 HD and 2160 Ultra HD
• Models can be purchased with or without power supply



  Input

  Video Input Connectors	1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female
  Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps
  Audio Input Connectors	None
  Embedded Audio Input	HDMI SDI

  Output

  Video Output Connectors	1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female
  Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps
  Audio Output Connectors	None
  Embedded Audio Output	HDMI SDI

  Standards

  Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
  HDCP Support	Version 2.2
  HDR Compatibility	Not Specified by Manufacturer

  Connectivity

  Other I/O	1 x USB Type-C Firmware Input (Shared Power)
  Expansion Slots	None

  Hardware

  Tally Light	Yes
  OS Compatibility	macOS 10.15.15 or Later Windows 11.1 or Later

  Power

  Power Connector	1 x USB Type-C (4.4 to 5.2 VDC) Input
  Power Consumption	Device: 5 W

  Environmental

  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Operating Humidity	0 to 90%

  General

  Dimensions	3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
  Weight	6.13 oz / 174 g
