JBL EON710 10-inch Powered PA Speaker

$949.00 AUD
$949.00 AUD
Tax included. Shipping calculated at checkout.
Spend $100.00 AUD more to reach Free Shipping!
0%

✓ Free shipping Australia-wide on this item

Brand: JBL
Ships Fast from Australia: Low stock
SKU: EON710

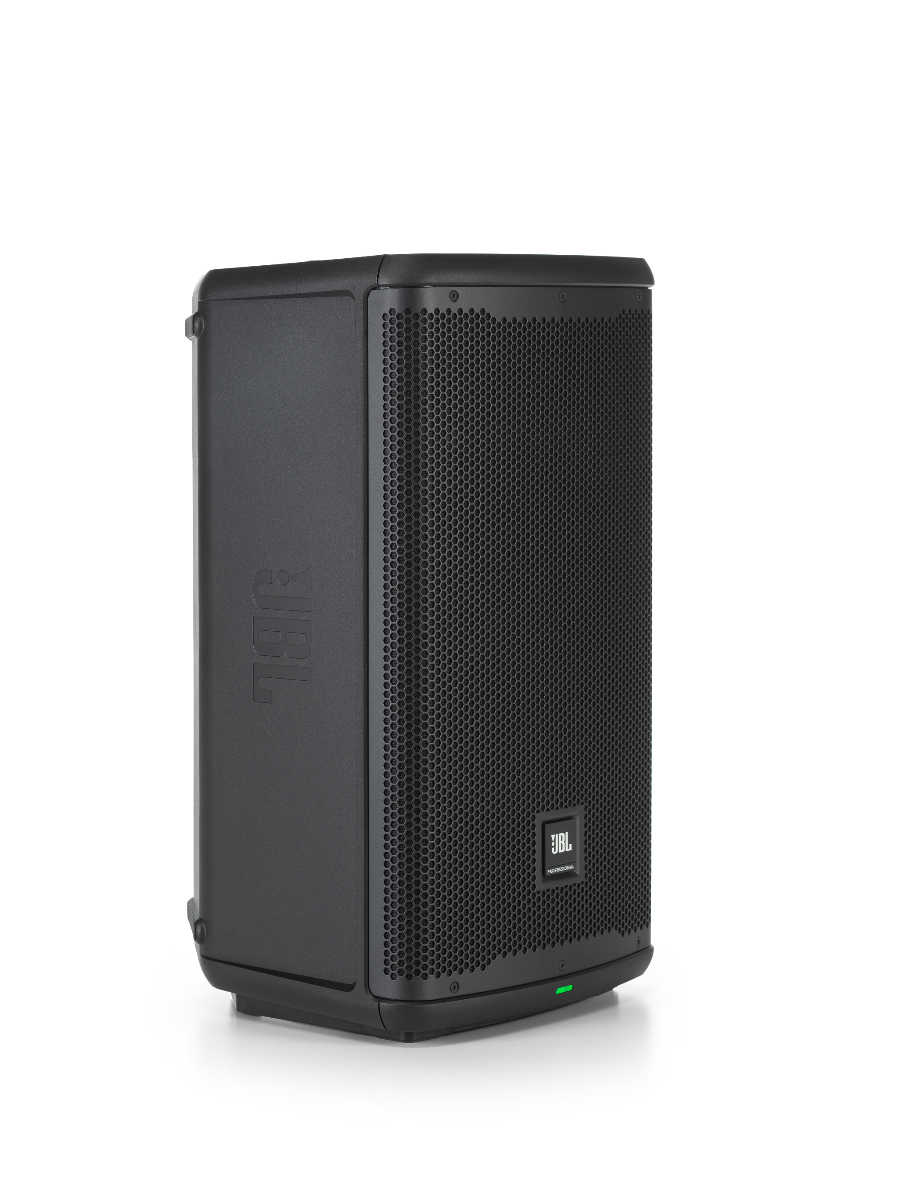

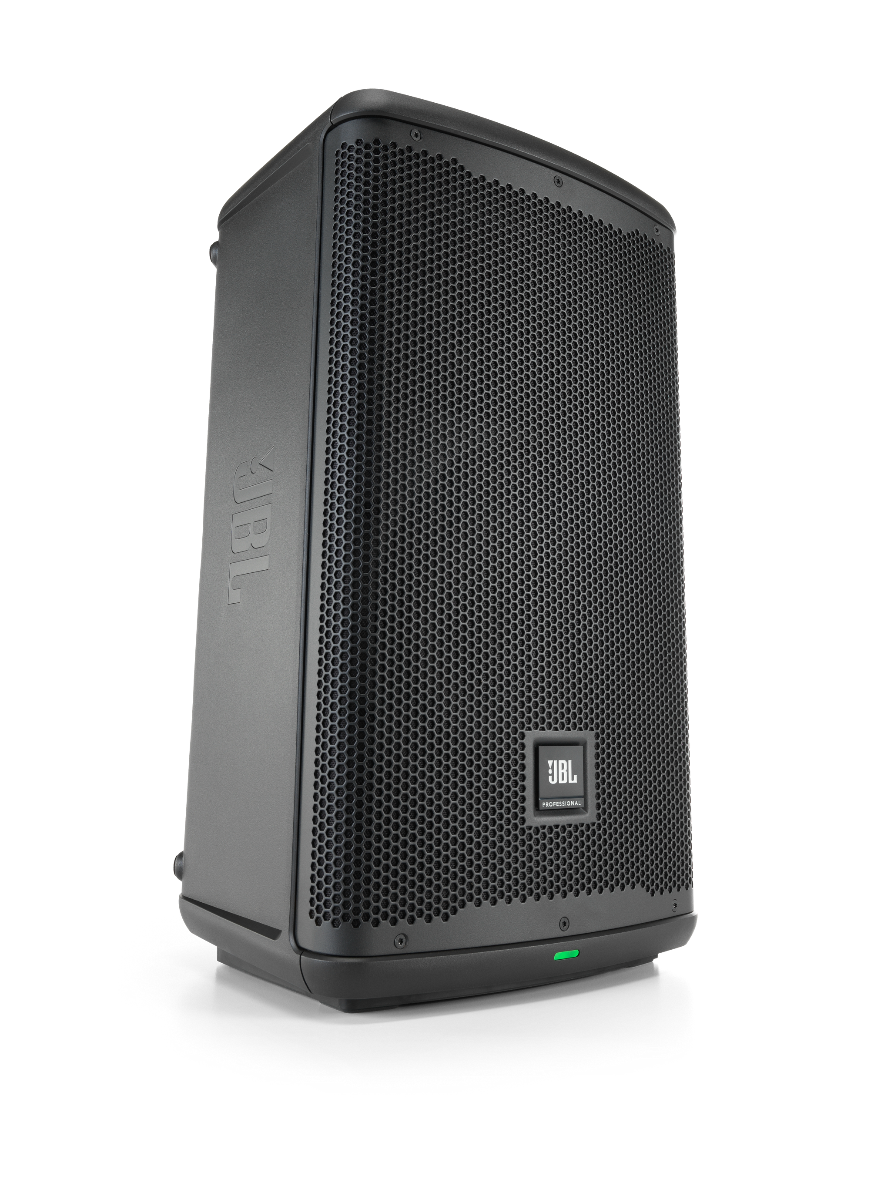

JBL EON710 10-inch powered speaker, front three-quarter view from the left with the side handle recess visible
$949.00 AUD
$949.00 AUD

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.



Features

  • Custom-designed 10-inch woofer
  • 2414H compression driver
  • Redesigned high-frequency horn
  • Power: 1,300W peak / 650W RMS
  • Frequency response: 52 Hz–20 kHz (-10 dB); 65 Hz–20 kHz (-3 dB)
  • Max SPL: 125 dB
  • Dispersion: 110° H x 60° V

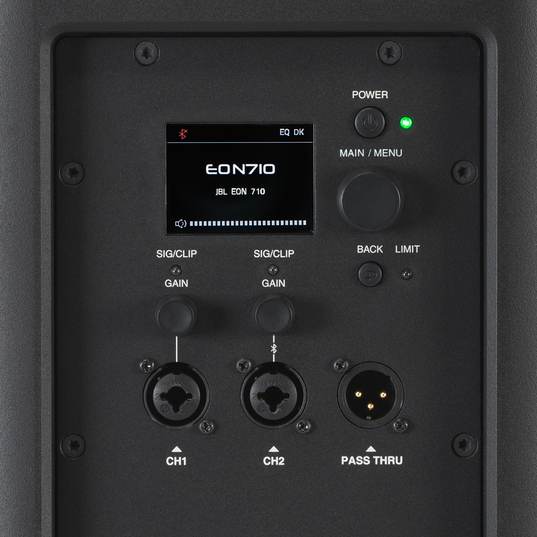

  • Audio I/Os: 2 XLR Combo, 1 XLR passthrough
  • Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
  • Built-in 3-channel digital mixer
  • Backlit color LCD screen provides easy access to functions

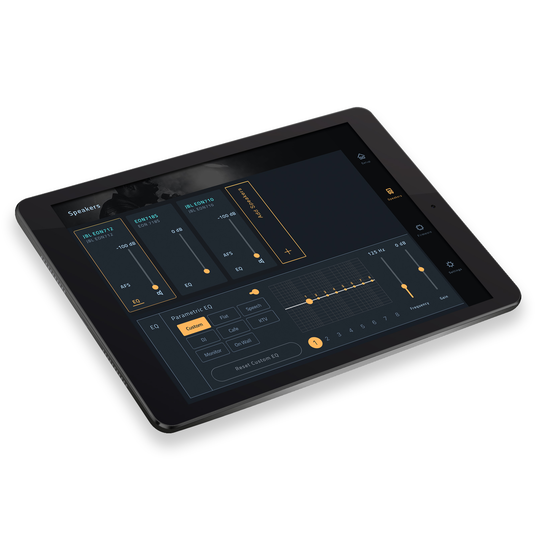

  • Universal JBL Pro Connect app control
  • Bluetooth 5.0 streaming and control
  • Durable talc-reinforced polypropylene cabinet and metal grille

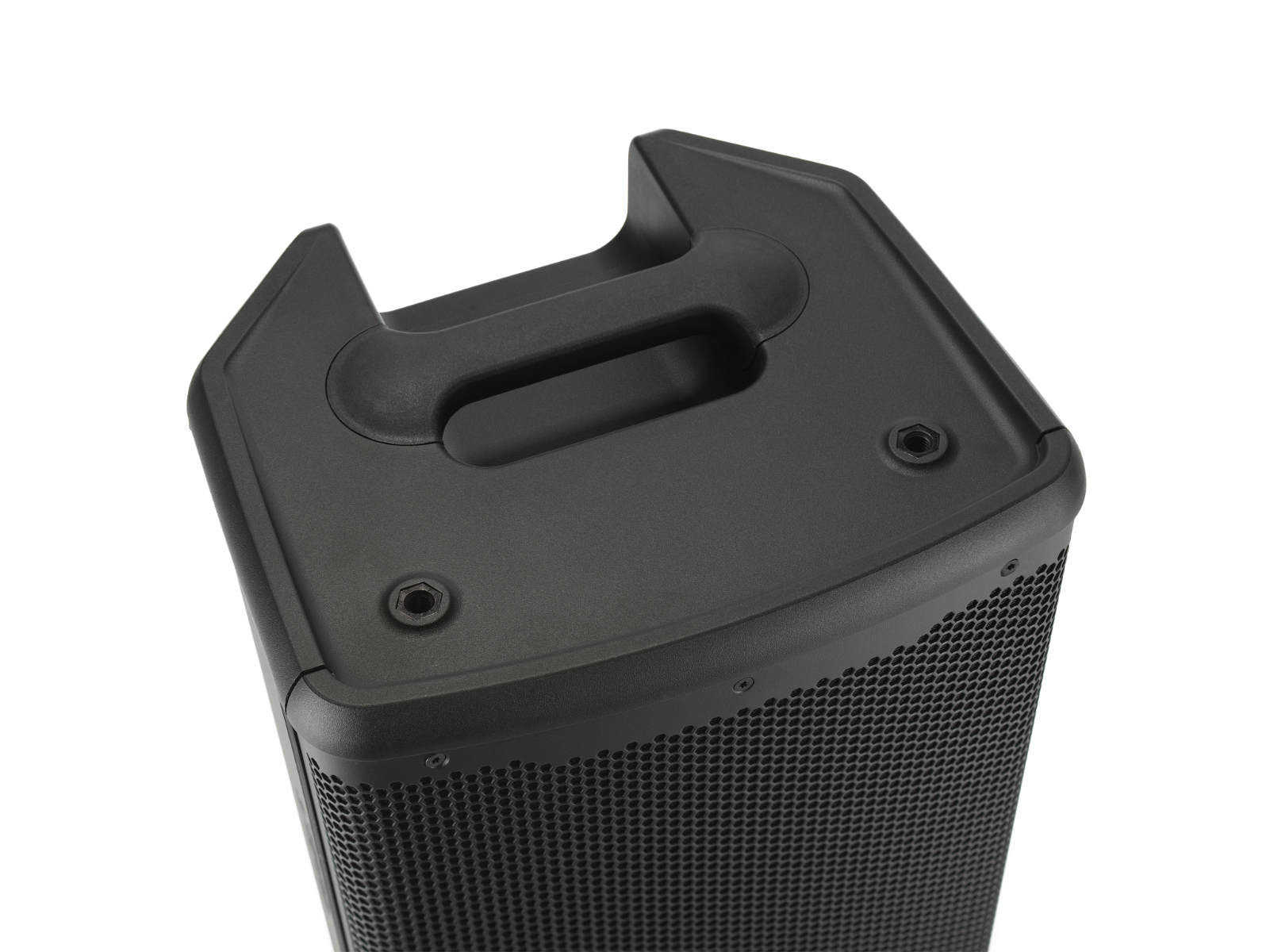

  • Ergonomic handle simplifies transport
  • Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
  • Stackable cabinets allow easy storage
  • Dimensions: 23.11 x 13.07 x 11.81 in (587 x 332 x 300 mm) (HxWxD)
  • Weight: 26.2 pounds (11.9 kg)
  • Shipping dimensions: 24.72 x 17.63 x 16.37 in (628 x 448 x 416 mm) (HxWxD)
  • Shipping weight: 33.1 pounds (15 kg)

Frequently Asked Questions

What size room or audience does the EON710 suit?

The 10-inch EON710 is the compact model in JBL EON700 range, and a sensible choice for speech, acoustic sets, small bands and corporate presentations, used as a pair on stands. With 1,300W peak and a 125dB maximum SPL there is plenty of headroom for its size. If you need more low end for a dance floor, add a subwoofer or step up to the 12-inch EON712 or 15-inch EON715.

Does it need a separate amplifier or mixer?

No amplifier: it is a powered speaker with the amp and DSP built in, so a signal goes straight into it. Two XLR combo inputs mean you can plug a microphone or a line source directly in for simple jobs such as a speech or a lectern. For anything with several sources you still want a mixer in front of it.

What is the coverage pattern, and why does it matter?

110 degrees horizontal by 60 degrees vertical. The wide horizontal pattern spreads sound across an audience rather than beaming at the middle rows, while the narrower vertical pattern keeps energy off the ceiling and floor, which is what preserves speech intelligibility in a hard, reflective hall. Frequency response runs 52Hz to 20kHz at -10dB.
