Understanding the Antenna Combiner
Before we delve into the details, let’s take a brief look at how an antenna combiner works. The process begins with multiple RF signals from IEM transmitters being sent via coaxial cables to the antenna combiner. The combiner merges these signals and directs them to a single antenna, which transmits the combined mixes across multiple frequencies. By utilizing a paddle antenna, you can position it flexibly in an elevated or unobstructed location to achieve better reception and minimize interference. Finally, beltpack receivers pick up these RF signals, convert them back into audio, and deliver clear and synchronized sound directly to the performers' in-ear monitors, providing reliable monitoring during performances.
Designed for busy stages and complex setups, the antenna combiner ensures seamless signal integration, cleaning up the RF environment and boosting signal transmission to optimize your IEM setup.
See the PAS-227X in Action
Move Past the Chaos

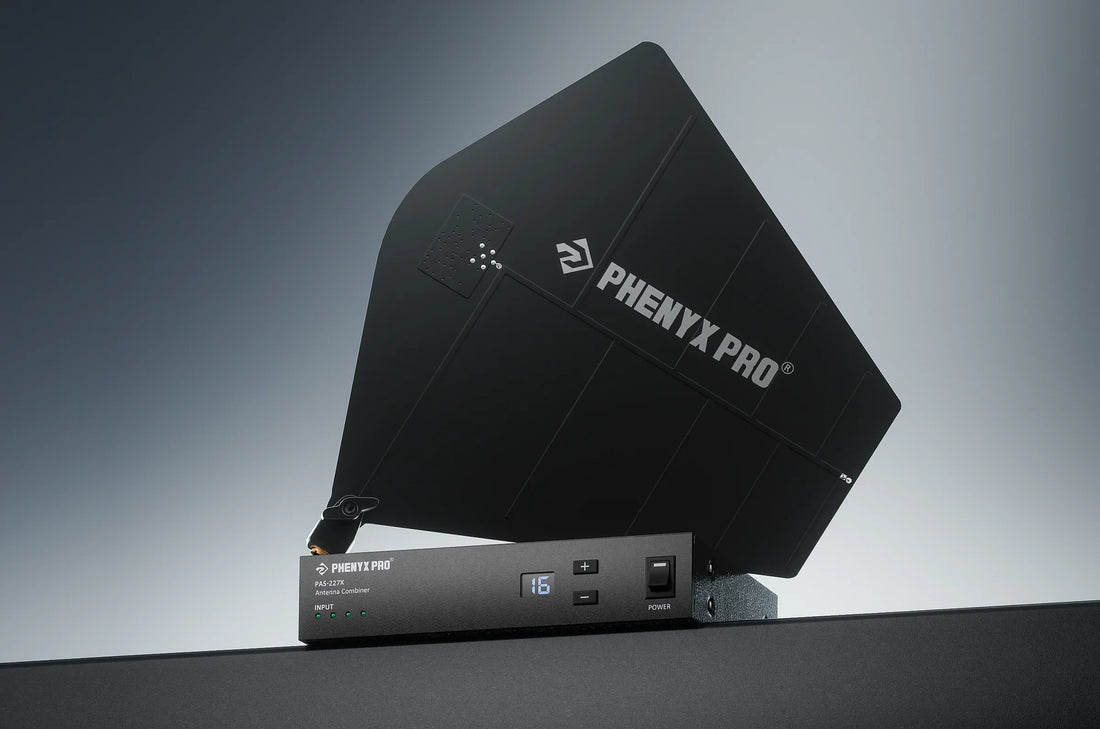

No longer will you be burdened by the mess of closely-spaced antennas—the PAS-227X antenna combiner offers you a more streamlined, organized setup. Equipped with four antenna inputs, the combiner supports input from up to four in-ear monitor transmitters signals, merging them into one unified, powerful antenna output. This efficient management reduces deadspots arosed from cross-polarization fades and interference from intermodulation distortion, resulting in extended coverage and enhanced wireless reliability.
Ready for Any Stage
Take full control of your signal with the 16-level gain control. With a maximum boost of +6dB, this feature gives you the flexibility to adapt to any environment. In larger venues, simply increase the gain to offset signal loss; In crowded RF areas, reduce the gain to avoid signal overload. No matter the space, fine-tune your gain to achieve consistent performance every time.
Works Across the Board
Compatibility is never an issue—this universal solution fits effortlessly with most IEM systems. The PAS-227X works seamlessly with nearly all wireless IEM brands within the 450-970 MHz frequency range.
Setup with Ease
Embrace ultimate convenience through every thoughtful detail. Compact half-rack design helps conserve valuable rack space to configure more devices. Removable feets allow for quick rack installation. Built-in adapter cord tie-off keeps cable neat and tidy. Plus, the RF LED indicator on the front panel provides real-time monitoring of the signal input from each IEM transmitter.
Access the Full Kit
Elevate your setup with all the right accessories. The inclusion of the antenna mounting plate and rod enables you to set up the paddle antenna in the ideal position for a clear line-of-sight. Meanwhile, the durable carrying case offers reliable protection and easy portability for your gear.
Unboxing All Your Essentials
- 1 x Antenna Combiner
- 1 x Paddle Antenna
- 1 x Antenna Mounting Rod
- 1 x Antenna Mounting Plate
- 4 x BNC Jumper Cable
- 1 x BNC Coaxial Cable
- 1 x Power Adapter
- 1 x Carrying Case
- 1 x User Manual
Key Specs at a Glance
Combiner
- Frequency Range: 450-970 MHz
- Input Connector: BNC x 4
- Gain: 0-6 dB
- Maximum Input Power: 20 dBm (100 mW)
- Dimensions: 212 x 168 x 43 mm
- Power Input: DC 12V/2A
Antenna
- Output Connector: BNC x 1
- Gain: 3 dB
Innovating Hand in Hand
Recognizing the scarcity of such high-quality IEM solutions on the market and listening closely to your feedback, we moved swiftly from concept to production to create a tool that supports your IEM setup. This combiner not only fulfills your needs but also completes our product line, embodying a partnership where your insights drive our innovation for mutual benefit.
The PAS-227X antenna combiner brings cohesion and clarity to complex IEM setups, delivering interference-free audio across varied spaces. If you’re ready to refine your IEM setup for greater efficiency and performance, this combiner is the tool you’ve been waiting for—add it to your setup today and experience its impact firsthand.
